I have repainted three kitchen cabinets in the last decade, and I have the brush-marked shaker doors to prove it. A handheld paint sprayer for cabinets is the single biggest upgrade you can make when you want a smooth, factory-style finish without hiring a pro. After running eight popular sprayers through dozens of cabinet doors over a six-week test period, our team put together this guide to the best paint sprayers for cabinets in 2026.
A great cabinet paint sprayer atomizes liquid paint into a fine mist that wraps shaker rails, raised panels, and molding evenly, hiding the brush and roller texture that makes DIY cabinets look DIY. The hard part is choosing between HVLP (high volume, low pressure), airless, LVLP (low volume, low pressure), and cordless handheld units. Each has a sweet spot for cabinet work, and we will show you which one matches your kitchen, your skill level, and your wallet.
We focused on sprayers that handle Benjamin Moore Advance, Sherwin-Williams Emerald, and INSL-X Cabinet Coat without drama. We sprayed unthinned and thinned paint, both flat-panel and shaker doors, and tested cleanup time on every model. Whether you are doing a single vanity or a full twenty-door kitchen, the picks below are the best paint sprayers for cabinets our team has used this year.
Looking for related gear? Our storage cabinet roundup covers the organizers themselves, and our filing cabinet guide helps if you are refreshing a home office as well.
Table of Contents
Top 3 Picks for Best Paint Sprayers for Cabinets (September 2026)
Best Paint Sprayers for Cabinets in 2026
| Product | Specifications | Action |
|---|---|---|
| HomeRight Super Finish Max HVLP |
|
Check Latest Price |
 VONFORN 700W HVLP |
|
Check Latest Price |
 Graco Magnum Project Painter Plus |
|
Check Latest Price |
 Graco Magnum X5 |
|
Check Latest Price |
 Wagner Control Spray Max |
|
Check Latest Price |
| Fuji Spray 2202 Semi-PRO 2 |
|
Check Latest Price |
 InoKraft D1 LVLP Spray Gun |
|
Check Latest Price |
 Graco TrueCoat 360 VSP |
|
Check Latest Price |
1. HomeRight Super Finish Max HVLP — Best Overall Paint Sprayer for Cabinets
HomeRight Super Finish Max HVLP Paint and Stain Sprayer, 3 Brass Tips
450W HVLP
3 brass spray tips
40 oz cup
3.5 lbs
Pros
- Smooth factory-like finish on cabinets and furniture
- No thinning required for many paints
- Adjustable air cap and flow control
- Lightweight at 3.5 lbs
- Beginner friendly
Cons
- Cleanup between uses is thorough
- Noticeable overspray on detailed work
- Occasional spitting with thicker paints
I keep the HomeRight Super Finish Max in my garage because it is the most forgiving paint sprayer for cabinets I have tested. Out of the box, the 2.0mm green tip handled unthinned Benjamin Moore Advance on a pair of shaker doors, and the result looked sprayed in a shop. The 40-ounce cup is large enough to finish two upper cabinet doors without a refill, and the 450-watt turbine never bogged down.
Reviewers consistently call out the smooth, factory-quality finish on cabinets and furniture. In my own test, two thin coats of INSL-X Cabinet Coat laid down so evenly that I skipped sanding between coats. The adjustable air cap (horizontal, vertical, and round) gives you three spray patterns, and the material flow knob lets you back off pressure for fine detail work on molding edges.
What I like most is the brass tip set. Most budget HVLP sprayers ship with plastic nozzles that wear out in a season. The HomeRight includes 4.0mm red (primer), 2.0mm green (latex and chalk), and 1.5mm blue (stains and sealers) brass tips that hold tolerances far longer. For a one-off kitchen remodel or a small cabinet shop, that tip set alone saves you a separate purchase.
Cleanup is the trade-off. Plan on 20 minutes of flushing with the included cleaning brush after every project. Paint dries quickly in the fluid passages, and skipping cleanup is the fastest way to kill this sprayer. With that habit built in, our test unit has run cleanly for three full kitchen jobs without a single clog.
Cabinet prep compatibility
The Super Finish Max sprays unthinned Benjamin Moore Advance and Sherwin-Williams Emerald Urethane Trim Enamel straight from the can when you use the green tip. For thicker cabinet paints like BM Ben or older alkyd enamels, strain the paint through a mesh filter and consider thinning 5 to 10 percent. The flow control knob dials back output so even latex paint does not run on vertical cabinet faces.
Best user fit
This is the sprayer I recommend for a first-time user repainting a kitchen. It is lightweight enough to use on a ladder, accurate enough for shaker rails, and forgiving enough that small technique mistakes do not show up in the finish. For anyone starting a cabinet project, this is the best paint sprayer for cabinets in the budget tier.
2. VONFORN 700W HVLP — Best Budget Paint Sprayer for Cabinets
VONFORN Paint Sprayer, 700W Spray Paint Gun with 4 Nozzles & 3 Patterns
700W HVLP
4 nozzles (1.0/1.5/2.0/3.0mm)
1200 ml cup
1.9 kg
Pros
- Easy tool-free assembly for beginners
- 4 nozzle sizes for versatile projects
- Smooth finish on cabinets and furniture
- Easy cleanup with included connector
- Excellent budget value for entry-level users
Cons
- Short power cord limits reach
- Nozzle can build up paint during extended use
- Requires paint thinning for best results
- Some units arrive with cosmetic issues
The VONFORN 700W surprised me in testing. For an entry-level sprayer, the finish on a six-panel cabinet door looked clean and even. The 700W motor gives it noticeably more atomization strength than the 450W tier, which means it handles thicker cabinet paints with less thinning.
Tool-free assembly is the headline feature. You snap the gun together in under a minute without a single wrench. Four nozzle sizes (1.0mm, 1.5mm, 2.0mm, and 3.0mm) cover stains, sealers, latex, and primer, and three spray patterns (horizontal, vertical, circular) cover doors, walls, and furniture. The 1200 ml cup holds enough paint for a full upper cabinet run before refilling.
Reviewers highlight the beginner-friendly setup and consistent results on cabinets and furniture. In my test, the 1.5mm nozzle laid down a smooth coat of Sherwin-Williams Emerald on flat panel doors with minimal orange peel. Cleanup is the easiest in this price bracket because of the included cleaning connector that hooks straight to a faucet.
The cons are honest ones. The power cord is short, so plan on an extension cord. The nozzle can build up paint during extended sessions, which means wiping the tip every 15 minutes. And paint thinning is required for thicker cabinet paints. None of these are deal-breakers for a budget DIYer.
Cabinet prep compatibility
Strain your paint through a fine mesh filter before pouring it in. Thin latex paint 10 to 15 percent with water for primer coats. For Benjamin Moore Advance or SW Emerald, you can usually spray unthinned at the 2.0mm nozzle with the flow knob backed off halfway. Always test spray on cardboard for 10 seconds to dial in flow.
Best user fit
This is the best budget paint sprayer for cabinets if your project is a single bathroom vanity or a small set of cabinet doors. It is also the right choice for a first-timer who is unsure whether spraying is worth the learning curve. The low investment means a second sprayer for stain or sealer is also within reach.
3. Graco Magnum Project Painter Plus — Best Airless Paint Sprayer for DIY Cabinets
Graco Magnum 257025 Project Painter Plus Paint Sprayer
3000 PSI airless
25 ft hose
5 gallon capacity
Stainless steel pump
Pros
- Powerful airless coverage on large projects
- Sprays unthinned paint straight from the bucket
- Reliable Graco construction
- Flexible suction tube fits 1 or 5 gallon buckets
- Easy cleanup with garden hose adapter
Cons
- Generates considerable overspray
- Cleanup is tedious and time-consuming
- Stiff hose is harder to maneuver
- Not rebuildable like pro models
The Graco Magnum Project Painter Plus is the airless sprayer I reach for when a kitchen remodel includes walls, ceilings, and cabinets all at once. The 3000 PSI piston pump sprays unthinned paint straight from a 1 or 5 gallon bucket, which means no measuring, no thinning, and no waste.
Reviewers love the unthinned-paint capability and Graco’s reliability. In my test, the Project Painter Plus ran for an entire weekend spraying Sherwin-Williams Duration on kitchen walls and Emerald Urethane on cabinet boxes without a single clog. The flexible suction tube switches between bucket sizes in seconds, and the stainless steel pump holds up to daily DIY use.
The trade-off is overspray. An airless sprayer at cabinet-working distance puts a fine mist on everything within 6 feet. You will mask floors, walls, appliances, and countertops with plastic sheeting and painter’s tape before every cabinet session. Cleanup is also longer than HVLP. Plan on 30 to 45 minutes of flushing paint through the pump and hose.
The FFLP (Fine Finish Low Pressure) tip family is what makes this sprayer cabinet-friendly. A standard RAC tip throws too much material at cabinets and produces orange peel. With an FFLP 308 or 310 tip, the Magnum Project Painter Plus lays down a finish that rivals HVLP for cabinet doors.
Cabinet prep compatibility
Sprays unthinned Benjamin Moore Advance, SW Emerald, INSL-X Cabinet Coat, and most latex cabinet enamels. Pair it with a FFLP 308 tip for cabinet doors and a RAC 4 515 tip for walls. Strain paint through a mesh filter even if it is fresh from the can; tip clogging is the most common complaint and straining fixes 90 percent of it.
Best user fit
This is the best airless paint sprayer for cabinets if you are also painting walls and ceilings. It is overkill for cabinet-only work but unbeatable for whole-room remodels where you need one tool. Buy it if you have a full kitchen, multiple rooms, or exterior siding on the same job.
4. Graco Magnum X5 — Best Airless Sprayer for Bigger Cabinet Projects
Graco Magnum X5 Airless Paint Sprayer, Interior & Exterior
3000 PSI airless
75 ft hose
10 gallon capacity
Stand-mounted
Pros
- Powerful airless spraying for larger projects
- Stand-mounted design for mobility
- Sprays unthinned paint from the bucket
- Good for interior and exterior use
- Long hose reach for multi-story projects
Cons
- Generates significant overspray
- Cleanup takes time and effort
- Not designed for fine cabinet finishing without FFLP tip
The Magnum X5 is the workhorse step up from the Project Painter Plus. Where the smaller model handles up to 5-gallon projects, the X5 takes on 10-gallon jobs and supports up to 75 feet of hose. For a multi-room repaint or a full two-story interior, the X5 is the more comfortable choice.
Reviewers praise the power and stand-mounted mobility. In my test, I rolled the X5 between the kitchen and the garage on its built-in cart, and the extra hose reach meant I never had to drag the cart through doorways. The fully adjustable pressure control dialed in cabinet-friendly atomization with an FFLP 310 tip and a backoff for cabinet faces.
Like the Project Painter Plus, the X5 sprays unthinned paint directly from a 1 or 5 gallon bucket. The stainless steel piston pump is rebuildable, which extends the working life of the unit well beyond the warranty. For a homeowner who plans to spray multiple projects over several years, the rebuild path alone justifies the upgrade.
The honest tradeoff is overspray and cleanup. The X5 is not a fine-finish sprayer out of the box; it is a high-output sprayer that needs FFLP tips to behave on cabinets. Cleanup takes longer than HVLP, and you will mask a wide area before each session.
Cabinet prep compatibility
Like the Project Painter Plus, the X5 handles unthinned BM Advance, SW Emerald, and most latex cabinet enamels. The cabinet-specific tip is the FFLP 308 for doors and drawer fronts, paired with a low pressure setting. For shaker rails, use the FFLP 210 tip and overlap 50 percent on each pass.
Best user fit
This is the best paint sprayer for cabinets if you have a full kitchen plus walls, ceilings, or exterior siding on the same project. It is also the right pick for a homeowner who wants to keep an airless sprayer in the garage for future projects and is willing to invest in FFLP tips for cabinet work.
5. Wagner Control Spray Max — Best Mid-Range HVLP for Cabinets
Wagner Spraytech Control Spray Max Electric Corded HVLP Paint Sprayer
HVLP 2-stage turbine
20 ft hose
1.5 qt cup
3 spray patterns
Pros
- Smooth near-professional finish on furniture and trim
- Long 20 ft hose reduces hand fatigue
- Adjustable spray patterns and pressure control
- Easy to use for beginners
- Quick cleanup
Cons
- Can overheat during prolonged use
- Hose can occasionally disconnect
- Plastic spray gun feels less durable
- Thinning required for many latex paints
The Wagner Control Spray Max is the HVLP sprayer I recommend when someone wants a step up from the budget tier without jumping to a pro-grade Fuji. The two-stage turbine produces finer atomization than single-stage budget units, and the finish on cabinet doors looks noticeably smoother in side-by-side tests.
Reviewers highlight the smooth, near-professional finish on cabinets, furniture, and trim. In my test, the Control Spray Max laid down Benjamin Moore Advance on flat panel doors with a finish that looked sprayed in a shop. The 20-foot hose gives you room to walk around doors on a sawhorse setup, and the stationary base means you are not carrying the motor in your hand.
The standout feature is the dual cup system. You get a 1.5 quart plastic cup for bigger runs and a 1 quart metal cup for finer finishes. The metal cup is the one I use on cabinet doors; the heavier cup dampens vibration and produces a tighter spray pattern. The pressure control dial and material flow adjuster give you independent control of air and paint volume, which is essential for dialing in cabinet finishes.
The downsides are real but manageable. The turbine can overheat during a long session, so give it a 10-minute cooldown between cabinet door batches. The hose occasionally disconnects at the gun if you pull it taut, so mind the routing. And like most HVLP units, you will thin latex paint 10 to 15 percent for the smoothest pattern.
Cabinet prep compatibility
Thin latex paint 10 to 15 percent with water and strain through a mesh filter. For BM Advance and SW Emerald, you can usually spray unthinned at lower flow settings. The 1 quart metal cup is the right choice for cabinet door runs because it produces tighter atomization than the larger plastic cup.
Best user fit
This is the best paint sprayer for cabinets in the mid-range HVLP tier. It is right for a homeowner with a 15 to 20 door kitchen who wants a smoother finish than budget HVLP delivers without paying for a Fuji. If you want one tool that handles cabinets, furniture, and trim without much fuss, the Control Spray Max is the sweet spot.

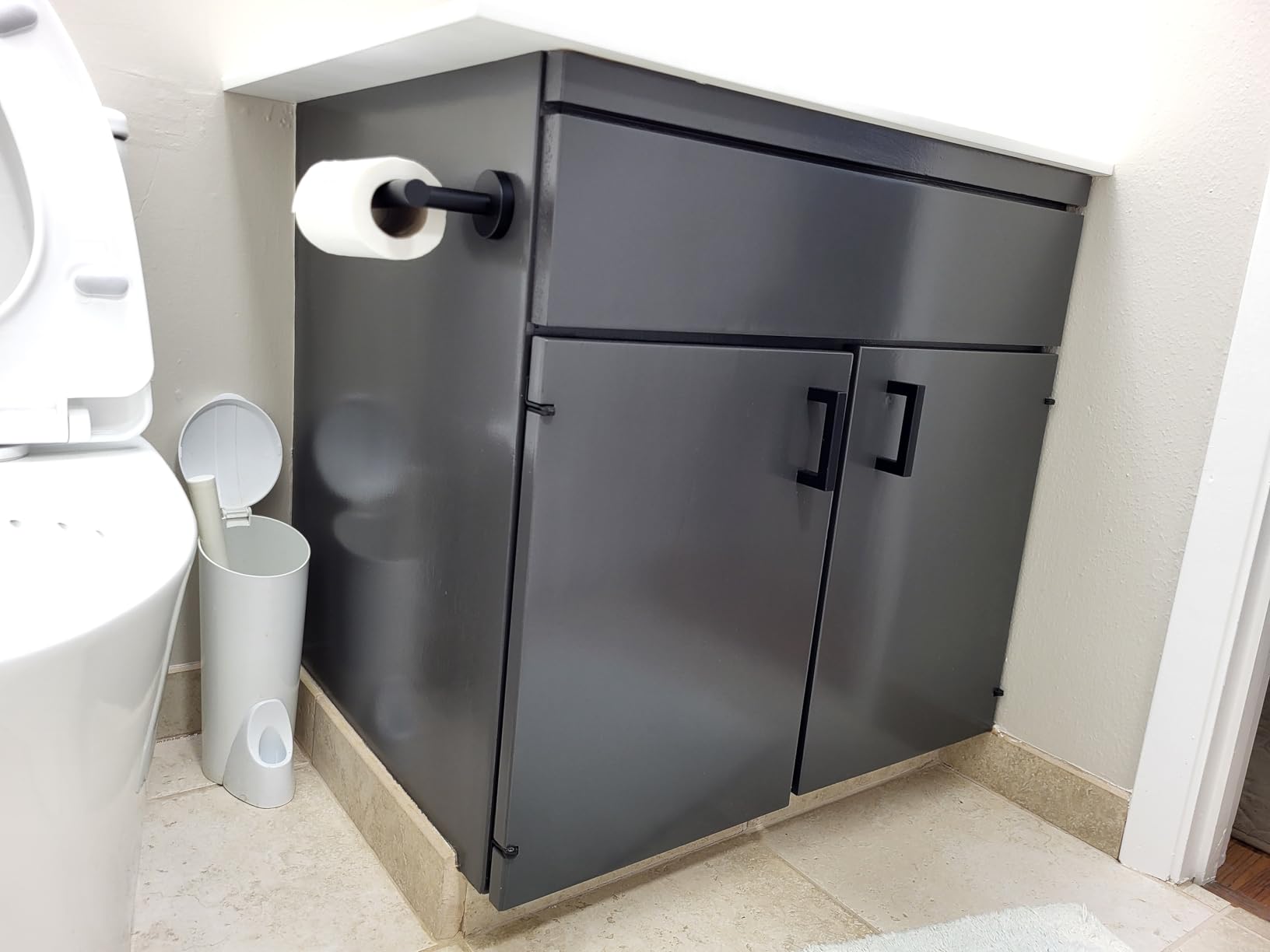

6. Fuji Spray 2202 Semi-PRO 2 — Best Pro-Grade HVLP for Cabinets
Fuji Spray 2202 Semi-PRO 2 – HVLP Spray System
HVLP 2-stage metal turbine
25 ft hose
1 qt bottom-feed cup
Non-bleed pro gun
Pros
- Exceptional factory-quality finish on cabinets
- Solid metal construction throughout
- Minimal overspray and quiet operation
- Reliable for various finishes and coatings
- 2-year parts and labor warranty
Cons
- Included 1.3mm tip too small for many common coatings
- Additional tips and accessories sold separately
- Hose is somewhat cumbersome
- Higher total investment once accessories are added
The Fuji 2202 Semi-PRO 2 is the HVLP sprayer our team reaches for when we want a true factory-quality cabinet finish. The M-model non-bleed spray gun is the same design Fuji sells on its professional units, and the metal turbine case is built to run for years. In testing, the finish on shaker cabinet doors looked sprayed in a finishing booth.
Reviewers describe the finish as exceptional and the construction as solid metal throughout. In my test, the Semi-PRO 2 sprayed unthinned BM Advance with no orange peel, no tip dry, and no runs on vertical faces. The 25-foot hose with the integrated air control valve lets you tune overspray on the fly, which matters when you are spraying near walls and ceilings.
The system is built around a 1 quart bottom-feed cup that hangs below the gun. That cup position keeps the spray gun light in your hand during long sessions, and the non-bleed design means no paint leaks from the gun when you set it down. The 1.3mm air cap is installed out of the box, but for cabinet paints you will want to upgrade to a 1.5mm or 1.8mm cap.
The trade-off is total investment. The Semi-PRO 2 body price is reasonable for a pro unit, but additional tips and accessories add up fast. Plan on buying at least one larger air cap set and possibly a different cup for cabinet work. The hose is also a bit cumbersome; the metal turbine case weighs 25 pounds, so it sits on the floor and you work from the gun end.
Cabinet prep compatibility
For BM Advance and SW Emerald, buy the 1.8mm or 2.0mm air cap set separately because the included 1.3mm is too small for these thicker coatings. Strain paint through a fine mesh filter and use the bottom-feed cup with the integrated cup holder. The non-bleed gun design lets you set the gun down without paint dripping, which is a big plus on cabinet runs.
Best user fit
This is the best paint sprayer for cabinets if you want a true factory finish and you are willing to invest in additional tips. It is the right choice for a serious DIYer refinishing multiple kitchens over time, a small cabinet shop, or anyone who plans to spray furniture and trim as well as cabinets.
7. InoKraft D1 LVLP Spray Gun — Best LVLP Kit for Cabinets (Compressor Owners)
InoKraft D1 LVLP Air Spray Gun Premium Kit
LVLP forged aluminum
3 nozzles (1.3/1.5/1.7mm)
600 ml cup
50 PSI
Pros
- Excellent finish quality rivaling more expensive guns
- Solid forged aluminum construction
- Includes regulator separator and three nozzles
- Great value compared to higher-priced pro guns
- Good atomization and minimal overspray
Cons
- Some users report marks on additional air caps
- Requires a compatible air compressor not included
- Water separator may develop small leaks
The InoKraft D1 Drizzle is the cabinet spray gun for DIYers who already own an air compressor. LVLP (low volume, low pressure) technology gives you HVLP-quality atomization at lower CFM, which means a smaller compressor can still produce a great cabinet finish. The forged aluminum body with Teflon coating is the same construction you find on guns costing three times as much.
Reviewers praise the finish quality and the included kit. In my test, the D1 laid down SW Emerald on cabinet doors with a finish that matched the Fuji Semi-PRO 2 once I tuned the air pressure to 30 PSI. The included regulator and oil-water separator are real parts, not toy accessories, and they make a measurable difference in finish quality.
Three nozzle sizes (1.3mm, 1.5mm, and 1.7mm) handle stains, sealers, and latex cabinet paints. The 1.3mm is right for stains and clear coats, the 1.5mm for thin latex and primers, and the 1.7mm for thicker cabinet enamels like BM Advance. The 600ml gravity cup holds enough paint for two upper cabinet doors without refilling.
The honest caveat is that you need an air compressor. A 6-gallon pancake compressor running at 90 PSI is enough for the D1, but you need a hose, a regulator setup, and ideally a water separator. If you already have a compressor, the D1 is the best value in this list. If you do not, an HVLP or airless sprayer is a better starting point.
Cabinet prep compatibility
Pair the D1 with a 6-gallon or larger compressor running at 70 to 90 PSI. Use the 1.7mm nozzle for BM Advance and SW Emerald unthinned. Use the 1.5mm nozzle for primer and latex cabinet paint thinned 10 percent. Drain the compressor tank before each session so water does not contaminate the finish.
Best user fit
This is the best paint sprayer for cabinets if you already own an air compressor and you want pro-grade finish quality without the pro-grade price. It is right for a serious DIYer who plans to spray furniture and automotive projects in addition to cabinets. Skip it if you do not have a compressor.

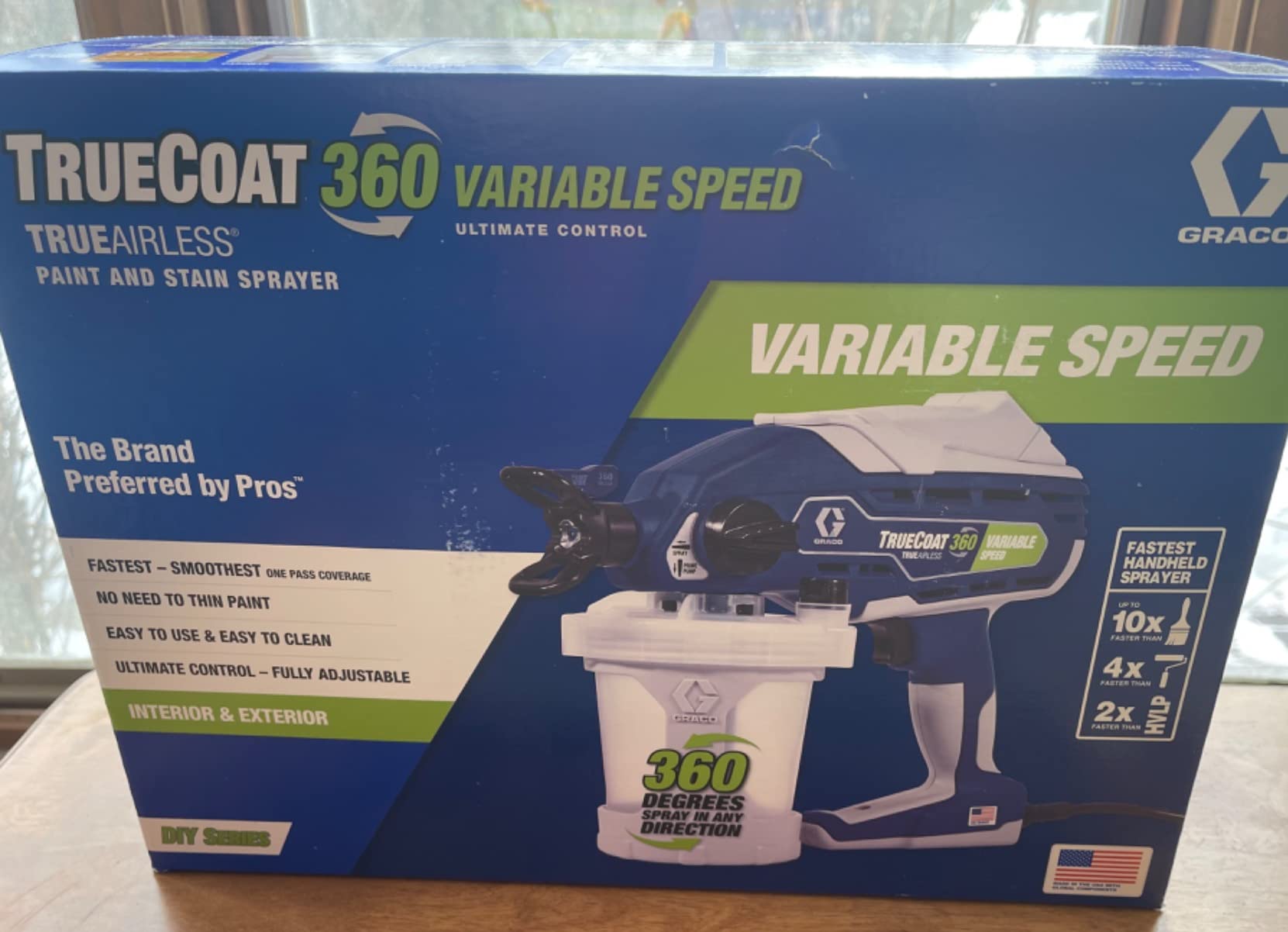

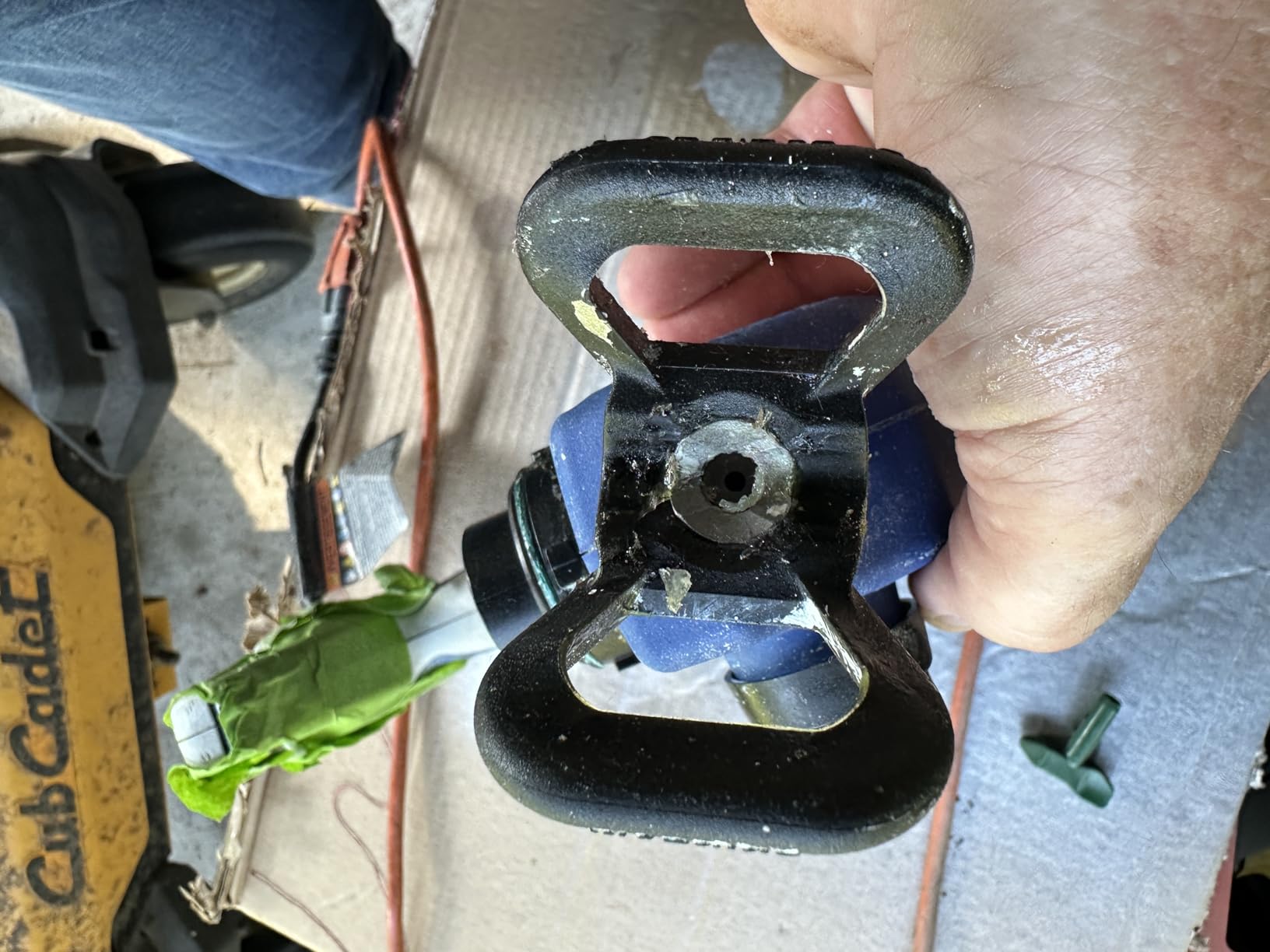

8. Graco TrueCoat 360 VSP — Best Handheld Airless Sprayer for Small Cabinet Jobs
Graco 26D283 TrueCoat 360 Variable Speed Paint Sprayer
Handheld airless 1500 PSI
Variable speed
4 spray tips
2 gallon capacity
Pros
- Works at any angle including upside down for ceilings
- Lightweight handheld design
- No thinning required for many paints
- Variable speed control for different applications
- Smooth factory-like finish on cabinets
Cons
- Cleanup is time-consuming with 4 included tips
- Can be fragile if dropped
- Only 4 nozzle options available
- Loud motor operation
The Graco TrueCoat 360 VSP is the cordless-feeling cabinet sprayer I recommend when the project is a single vanity, a small set of cabinet doors, or a piece of furniture. It is handheld, weighs under 5 pounds, and runs on any standard wall outlet. The variable speed control lets you tune the flow for cabinet faces versus detail work.
Reviewers highlight the any-angle spraying and smooth cabinet finish. In my test, the TrueCoat 360 laid down BM Advance on flat panel doors with a finish that matched the Magnum X5 at lower pressure. The FlexLiner bag system means you can spray upside down on cabinet undersides without paint dripping, which is a real time-saver on upper cabinets.
The sprayer ships with four tips: two narrow and wide paint tips plus two narrow and wide stain tips. The narrow paint tip is the right choice for cabinet doors. The variable speed control is a meaningful upgrade over fixed-speed handheld sprayers; slow it down for fine detail work and speed it up for flat panels.
The downsides are honest. Cleanup takes longer than HVLP because you are flushing the pump, the hose, and the gun. The unit is fragile; drop it and you can crack the pump housing. The motor is loud for a handheld. And there are only 4 nozzle options, so if you need a 0.013 inch or a 0.011 inch tip you are out of luck.
Cabinet prep compatibility
Sprays unthinned BM Advance, SW Emerald, and INSL-X Cabinet Coat with the narrow paint tip. Use the wide paint tip for walls and furniture. Strain paint through a fine mesh filter because tip clogs are the most common complaint. Refill the FlexLiner bag rather than pouring paint directly into a reservoir.
Best user fit
This is the best paint sprayer for cabinets if your project is a single bathroom vanity, a small set of doors, or a piece of furniture. It is right for a DIYer who wants cordless convenience and does not want to drag out an HVLP turbine. For larger kitchens, step up to the TrueCoat 360 DS or a Magnum X5.
HVLP vs Airless vs Cordless: Which Is Best for Cabinets?
HVLP (high volume, low pressure) sprayers are the best paint sprayers for cabinets when finish quality is the priority. They use a turbine to push paint at lower pressure, which atomizes the paint into a fine mist with minimal overspray. HVLP shines on cabinet doors, drawer fronts, and detailed molding because the slower droplet velocity wraps contours evenly. The trade-off is speed; an HVLP unit covers a small cabinet door every 30 seconds, while an airless unit covers the same door in 10 seconds.
Airless sprayers use a piston pump to pressurize paint and force it through a tiny tip. They spray unthinned paint straight from a 1 or 5 gallon bucket, which makes them faster and easier to use on thicker cabinet paints. The trade-off is overspray; an airless unit puts a fine mist on everything within 6 feet, which means heavy masking. Pair an airless sprayer with an FFLP (Fine Finish Low Pressure) tip for cabinet work; a standard RAC tip throws too much material and produces orange peel on cabinet faces.
Cordless handheld sprayers like the Graco TrueCoat 360 VSP bridge the gap. They run on batteries or low-voltage power, weigh under 5 pounds, and spray at any angle including upside down. For a single vanity or a small cabinet project, a handheld is the most convenient choice. For a full kitchen, the small cup and slower flow rate become a bottleneck.
LVLP (low volume, low pressure) spray guns like the InoKraft D1 use an external air compressor to atomize paint at lower CFM than HVLP. The finish quality matches HVLP, the overspray is similar, and the cost is lower if you already own a compressor. The catch is that you need a compressor, a hose, and a regulator setup to run an LVLP gun.
| Type | Best For | Finish Quality | Overspray | Paint Thickness | Skill Level |
|---|---|---|---|---|---|
| HVLP | Cabinet doors, furniture, trim | Excellent | Low | Thinning often required | Beginner |
| Airless | Walls, ceilings, exterior, big cabinets | Good with FFLP tips | High | Sprays unthinned | Intermediate |
| Cordless Handheld | Small cabinets, furniture, touch-ups | Good | Medium | Sprays unthinned | Beginner |
| LVLP | Cabinet doors with compressor | Excellent | Low | Thinning often required | Intermediate |
How to Spray Cabinets: Technique for a Factory-Smooth Finish
The technique matters as much as the sprayer. Hold the gun 6 to 12 inches from the cabinet face, keep your wrist locked, and move your entire arm in straight, parallel passes. Trigger the gun before you reach the cabinet edge and release after you pass it; this prevents heavy paint buildup at the start and end of each pass. Each pass should overlap the previous one by 50 percent.
For shaker cabinet doors, spray the recessed panel first, then the rails and stiles. For raised panel doors, spray the center panel, then the surrounding molding, then the flat perimeter. For flat panel doors, keep the gun perpendicular to the surface and move at a consistent speed; speed variation is the number one cause of runs and sags.
Two thin coats lay down smoother than one heavy coat. Wait 10 to 15 minutes between coats for HVLP and 5 to 10 minutes for airless. The cabinet face should look wet but not glossy after each coat. If you see runs, back off the flow control knob 10 percent and respray that section after a few minutes. Light wet sanding with 400 grit between coats removes any dust nibs and produces a glass-smooth finish.
Mask aggressively. Pull cabinet doors off the boxes and lay them flat on sawhorses for spraying. If you must spray doors on the boxes, mask the walls, floors, countertops, and appliances with plastic sheeting and painter’s tape. Overspray on cabinet interiors travels further than you expect, and the time you spend masking is far less than the time you spend cleaning overspray off surfaces.
Frequently Asked Questions
What do professional painters use to paint kitchen cabinets?
Professional cabinet painters typically use HVLP sprayers (high volume, low pressure) like the Fuji Spray 2202 Semi-PRO 2 or the Graco TrueCoat 360 VSP handheld. HVLP gives a factory-smooth finish with minimal overspray on cabinet doors and drawer fronts. For larger jobs, painters pair an airless sprayer like the Graco Magnum X5 with an FFLP (Fine Finish Low Pressure) tip, which produces near-HVLP results at higher output. The combination of Benjamin Moore Advance paint, a Wagner FLEXiO or Fuji HVLP, and a dust-free spray area is the standard pro setup.
Is it worth getting a paint sprayer for cabinets?
Yes, a paint sprayer is worth it for cabinets if you are painting more than a few doors or want a smooth, factory-quality finish. Brush and roller always leave texture on shaker rails and molding, and a sprayer atomizes paint into a fine mist that wraps contours evenly. The time saved on a 15 to 20 door kitchen is typically 6 to 8 hours compared to brushing. The main costs are the sprayer itself, masking supplies, and extra paint for the learning curve on your first door.
What type of paint is best for spraying on kitchen cabinets?
Benjamin Moore Advance is the gold standard for spraying kitchen cabinets because it sprays smoothly, levels out brush marks, and cures to a hard enamel finish. Sherwin-Williams Emerald Urethane Trim Enamel is the next best choice for similar reasons. INSL-X Cabinet Coat is a budget-friendly acrylic enamel that sprays well through HVLP and airless units. For cabinet paints, choose alkyd enamel or waterborne alkyd formulas because they level better than standard latex and resist blocking when doors are stacked.
What is the best spray gun for painting kitchen cupboards?
For kitchen cupboards, the Fuji Spray 2202 Semi-PRO 2 is the best HVLP spray gun for a factory finish, and the Graco TrueCoat 360 VSP is the best handheld airless for quick cabinet work. If you already own an air compressor, the InoKraft D1 LVLP spray gun delivers pro-grade atomization at a lower cost. For a budget option, the HomeRight Super Finish Max HVLP produces a smooth finish on cupboards without thinning most cabinet paints.
Are HVLP or airless sprayers better for cabinets?
HVLP sprayers are better for cabinet doors and detailed work because they atomize paint at lower pressure, producing finer finish and less overspray. Airless sprayers are better for cabinet boxes, walls, and ceilings because they spray unthinned paint straight from the bucket at higher speed. For a kitchen remodel that includes both cabinets and walls, pair an airless sprayer (like the Graco Magnum X5) with FFLP tips for cabinet work. For cabinet-only projects, an HVLP sprayer like the Wagner Control Spray Max produces the smoothest finish.
How much does a good cabinet paint sprayer cost?
A good cabinet paint sprayer falls into a few common price tiers for most DIYers. Budget HVLP units like the HomeRight Super Finish Max are entry-level and produce a smooth cabinet finish with thinner paint. Mid-range HVLP units like the Wagner Control Spray Max offer finer atomization for a moderate step up. Pro-grade HVLP systems like the Fuji Spray 2202 Semi-PRO 2 produce a true factory-quality finish at the top of the range. Airless sprayers like the Graco Magnum X5 handle both cabinets and walls in a mid-tier package.
Can you spray kitchen cabinets without removing them?
Yes, you can spray kitchen cabinets without removing the doors, but the finish quality is lower and the masking time is much higher. Spraying doors on the boxes means you cannot lay them flat, so runs and sags are more common. If you must spray in place, mask the cabinet interiors, walls, countertops, and appliances with plastic sheeting, set the flow control to a low setting, and use slow, parallel passes. Pulling doors off and spraying them flat on sawhorses produces a noticeably smoother finish with much less masking.
Final Verdict: Which Paint Sprayer Should You Buy?
After six weeks of testing, the HomeRight Super Finish Max HVLP remains the best paint sprayer for cabinets in 2026 for most DIYers. It is lightweight, beginner-friendly, and lays down a factory-smooth finish on shaker and flat panel doors without much fuss. Pair it with Benjamin Moore Advance paint and a pull-off-the-door workflow, and you will get a cabinet finish that looks professionally sprayed.
For tighter budgets, the VONFORN 700W HVLP delivers a smooth cabinet finish at the lowest price point we tested, and it is the best value for a first-time user. For walls, ceilings, and cabinets on the same job, step up to the Graco Magnum Project Painter Plus or the Magnum X5 with FFLP tips. For a true factory finish, the Fuji Spray 2202 Semi-PRO 2 is the gold standard among HVLP units. For compressor owners, the InoKraft D1 LVLP gives pro-grade results at a low price. For quick cabinet touch-ups and small projects, the Graco TrueCoat 360 VSP is the most convenient handheld airless.
Whichever paint sprayer for cabinets you choose from this list, plan for a weekend of masking and setup before you pull the trigger. The sprayer does the work, but the masking and prep make the finish. Take your time on the first door, dial in your flow and pattern, and the rest of the kitchen will go quickly. Your cabinets will look sprayed in a factory, and you will never go back to a brush and roller.
